Effective date: 2/15/2025
Description:
Symbio Runners manufactured after February 18, 2025, will feature updated internal packaging. This change enables them to tip 90 degrees to the side while packaged, allowing for easier transport through narrower spaces.

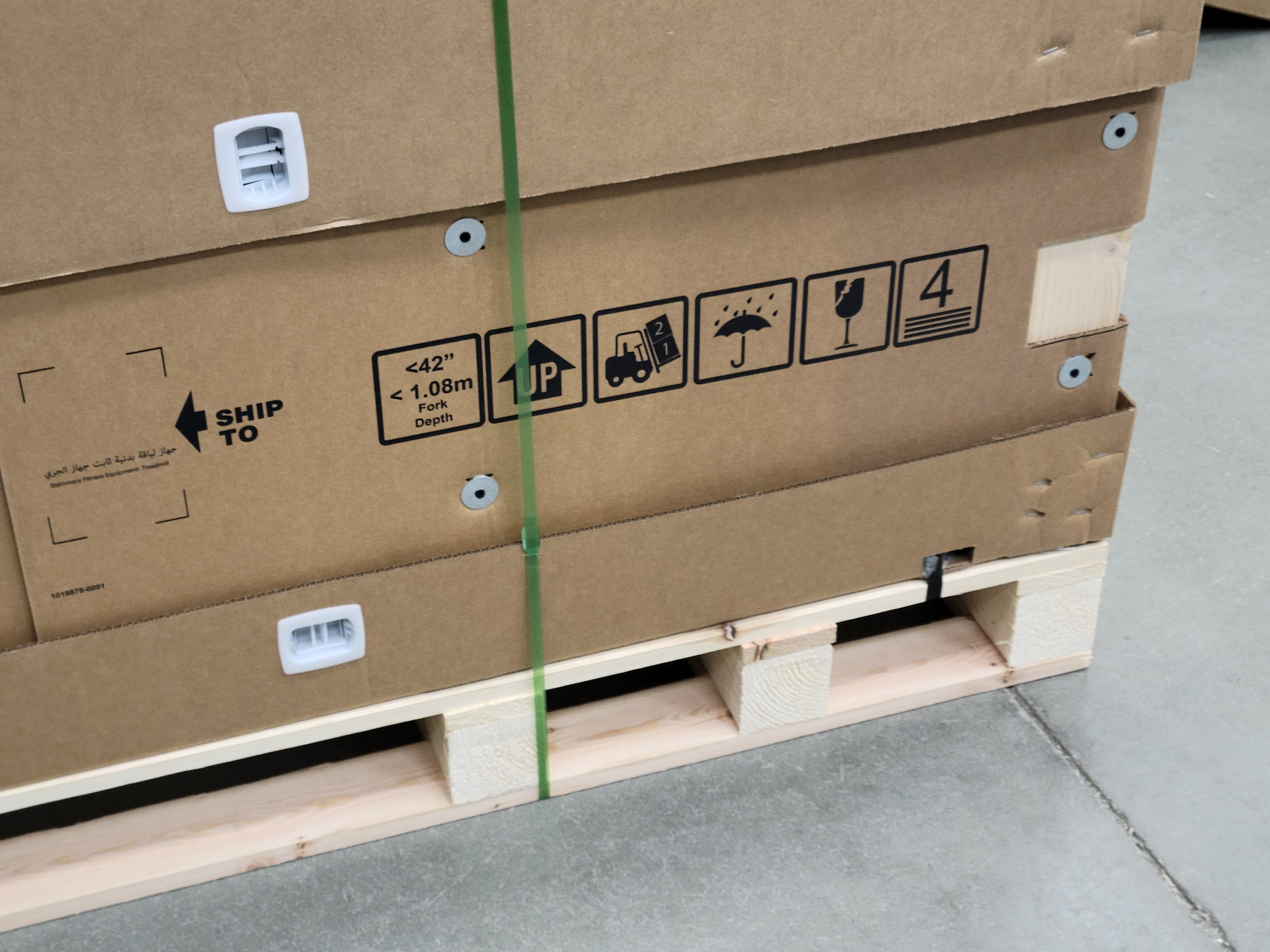

- The only visual indicators on the new packaging will be the cutout in the base tray and a portion of the nylon banding will be visible externally.
Serial number range: Any units with the serial number post SYMTRMW25080015 will have the latest revisions of packaging.
Scope:
The dimensions of the outer packaging will remain the same. However, the update includes the following changes:
- Updated assembly instructions to reflect the latest revision of assembly instructions 1022782-0001 (AE)

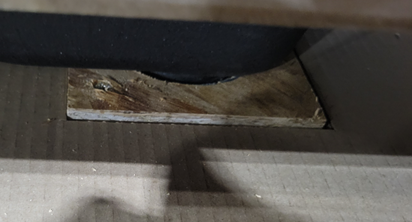

- Incorporated plywood compartments for adjustable leg levelers.

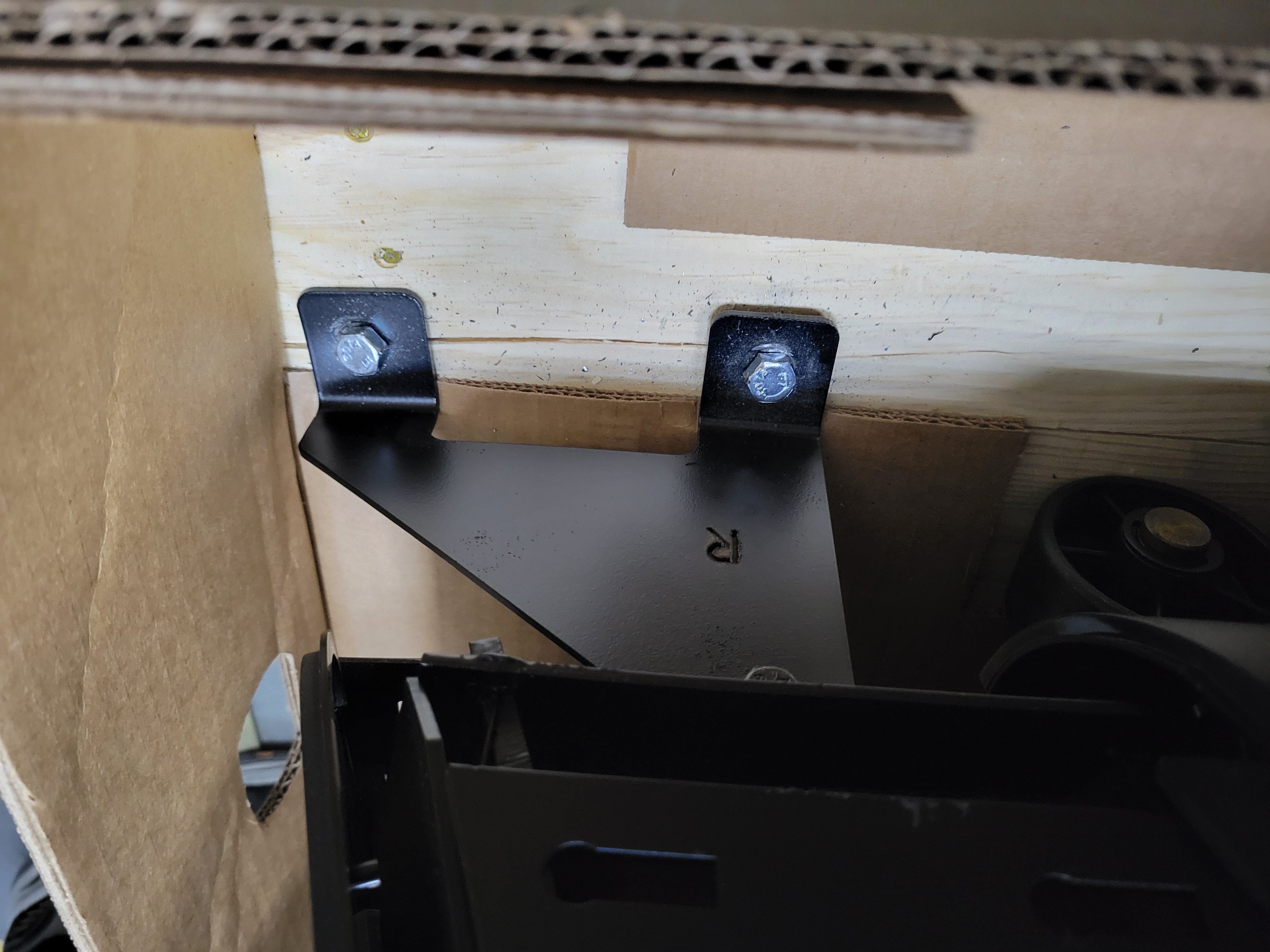

- Front brackets are now fastened to the pallet with two bolts on each side, while the earlier design used only one bolt per side.

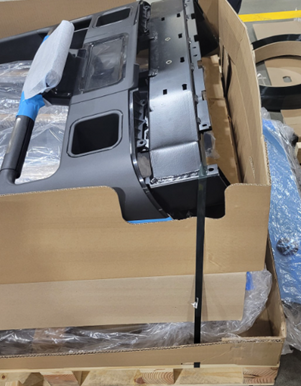

- Addition of rear nylon strapping to secure the rear of the runner and hold the bridge assembly in place
- Moved the bridge assembly box to the unit's rear and rotated it 180 degrees for better weight distribution.

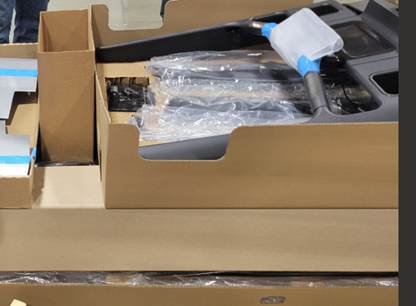

- Improvements to Bridge “Tray”
a. 2” thick Honeycomb bottom layer
b. Upright L-shrouds are flipped to reveal foam pad placement for easy inspection
c. Added protective foam over Center Console

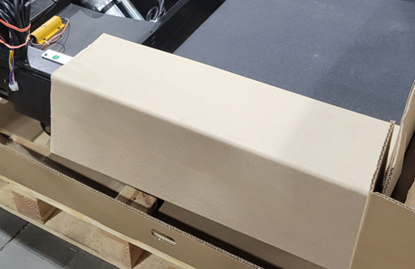

- Added cardboard protective covers to the foot rails and side panels.
- Removed the 2 top bridge castings from the bridge and added a third tray.
- Added four screws for bridge castings to hardware skin pack.
- Moved the manual and hardware box from the rear of the packaging to the center to prevent boxes from shifting when the package is tipped.
- A spacer box was added to prevent parts from moving when tipping the product and to utilize space more effectively in the packaging.

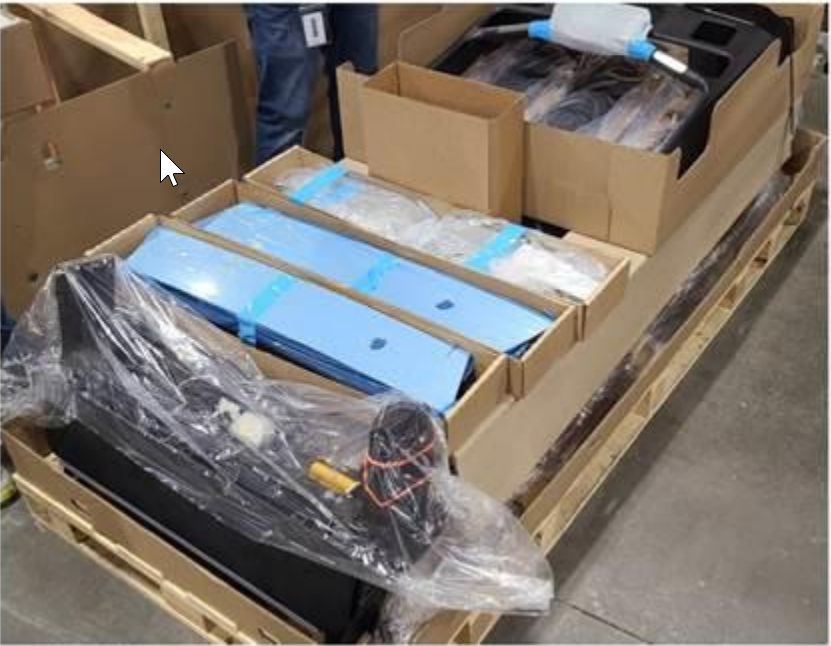

Overall Packaged Product without Top
Tipped on Side
