January 27, 2025: Replacing wiring, boards, and sub-assemblies that require removing connectors on electrical components can cause unexpected damage. Please see the following guide for safely replacing wiring and removing connectors.
Proper Handling Techniques:
1. Safety First
- Turn off power to the unit you’re working on. It should also be unplugged and safety protocols should be implemented when possible.
- Make sure there is no current running through the system before you begin removing the connectors or wires. This is usually indicated by a LED. Don't begin any service until all PCB LED's are extinguished.
2. Document the Setup
- Before disconnecting anything, take clear notes or pictures of the existing wiring and connector arrangement. This will help when you are reconnecting or replacing the wires.
- Label the wires if possible (with tape or tags) so you know where each one goes when reconnecting.
3. Remove the Old Wires
- Remove any zip ties holding the wires in place (if applicable).
- If you’re working with a plug or a connector, gently disconnect it by either pressing a release tab or unplugging it, depending on the design of the connector.

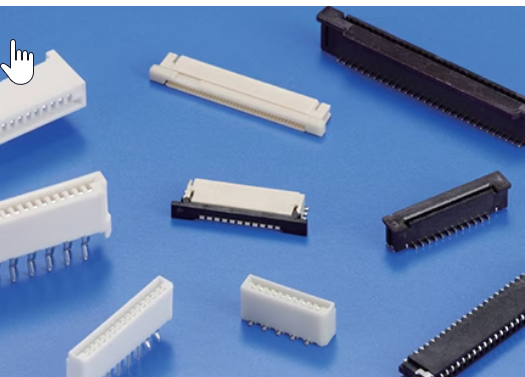

- Many FPC/FFC connectors feature a small latch or clip that locks the cable in place. Look for a tiny clip or latch near the connector. This could be on the side or top of the connector, depending on the model.
- Molex connectors typically have a small locking tab or latch on the side of the connector that holds it in place.
Damage can occur as shown below to connectors or wiring from improper handling.
Pulling on a wiring harness can cause several types of damage, depending on the force applied and the components involved. Here's how it can lead to issues:
-
Wire Fraying or Breakage: If the harness is pulled too hard, the individual wires inside may stretch, fray, or even break. This can disrupt the electrical circuit and lead to intermittent or total failure of the system.
-
Connector Damage: Wiring harnesses often include connectors that can become loosened or damaged if pulled too forcefully. This can result in poor electrical connections or even complete disconnection, leading to malfunctioning systems (e.g., lights, sensors, or motors).
-
Insulation Damage: The insulation around wires could get scratched, torn, or pinched. This exposes the wire inside, which can lead to short circuits, electrical fires, or signal loss.
-
Pinched or Crushed Wires: Pulling or bending the harness too aggressively may cause wires to be pinched between surfaces or crushed, which can break the copper wire inside or damage the insulation, resulting in short circuits or electrical failure.
-
Severing Ground Wires: Many wiring harnesses have dedicated ground wires that are crucial for the proper functioning of electrical systems. If pulled too hard, these wires may be disconnected, which can cause various electrical issues.
-
Damage to Other Components: A wiring harness often runs to various components. If it's yanked, it could damage nearby parts, or other sensitive components.
To avoid this kind of damage, wiring harnesses should be handled carefully, and if there’s a need to move or reposition them, it’s best to ensure that the wires are not subjected to stress, pulling, or sharp bends.
4. Test the Connections
- After replacing the wiring and connectors, make sure all wires are securely connected. Install zip ties where they were previously removed in step 3. Reference photos or diagrams referenced in step 2. Proper placement is key to avoid cable damage or strain.
- Double-check everything to ensure there are no loose connections, frayed wires, or shorts.
- Test the component to ensure it’s functioning correctly and that the wiring and connectors are securely in place.
5. Reassemble the System
- If there was a cover or casing over the component, reassemble it once you’re sure the wiring is correctly installed.
- Turn the power back on and check for proper operation.
Tips:
- If you're unsure about a particular connector or wire, consult the manufacturer's documentation for proper wiring diagrams or connector specifications.
