Life Fitness Symbio, Discover, Cybex 70T Console TV Channel Export and Import Process

Stuart Collop
  • Created
  • Updated

    • Description

    Described below is the process to follow to export a TV channel list from one console and import to another console of the same type and with the same tuner version installed.

    Note: Only export and import the channel list to a console of the same model and has the same tuner version installed. Use this link to see how to check which tuner and tuner software is installed.

    Link: Life Fitness Symbio, Discover, Cybex 70T Console Verify Tuner Type



    Tools Needed

    You will need a blank USB thumb drive, formatted to FAT32, to perform this process.

    Note: if the USB drive is not recognized bet the console try another USB thumb drive.



    TV Tuners Covered

    • DVB Triple Tuner
    • HDMI Combo tuner

    Consoles Supported

    • SE3
    • SE3HD / ST  / 70T
    • SE4
    • Symbio

    Process

    Exporting Channel List

    • Step 1
      1. Enter System Options
    • Step 2
      1. Select Configuration
    • Step 3
      1. Select Export / Import Settings
    • Step 4
      1. Take the prepared USB thumb drive and insert it into the USB port at the front of the console, wait for 15 seconds so the USB thumb drive is recognized by the console.
    • Step 5
      1. On the console screen select Export Settings To USB Stick. This will export the tuner channel list and console channel list to the USB drive. A popup window will appear to show the progress of the channel list being exported.
    • Step 6
      1. When the pop up wind shows "The export completed successfully" press the X in the top right corner of the popup.
    • Step 7
      1. Press the X in the top right corner of the screen to exit system options.

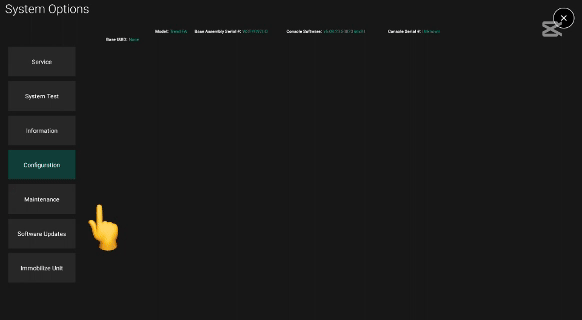

    Export Channel List.gif

    Importing Channel list

    • Step 1
      1. Enter System Options
    • Step 2
      1. Select Configuration
    • Step 3
      1. Select Export / Import Settings
    • Step 4
      1. Take the USB thumb drive with the exported channel list on and insert it into the front USB port of the console, wait for 15 seconds so the USB thumb drive is recognized by the console.
    • Step 5
      1. Select Import Settings From USB stick.
      2. Select Yes in the popup window to confirm overwrite of the existing channel list. Another popup will appear showing the progress of importing the channel list.
    • Step 6
      1. Once the popup says "The import completed successfully", press the X in the top right corner of the popup.
    • Step 7
      1. Press the X in the top right of the console screen to exit System Options.

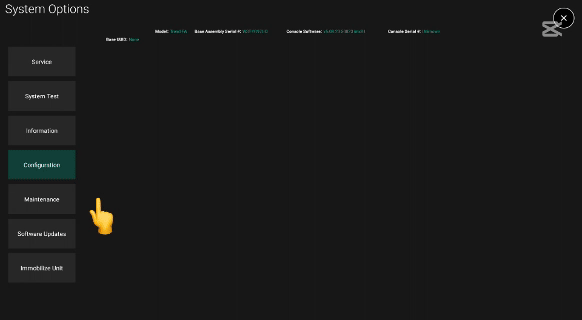

    Importing Channel List.gif
