Life Fitness Symbio, Discover, Cybex 70T Console DVB Tuners TV Channel Scan

Description

The following content describes the process to follow when scanning for TV channels on a console equipped with a DVB HDMI or DVB Triple Tuner TV.



TV Tuners Covered

• HDMI/Combi Tuner
• DVB Triple Tuner

Consoles Supported

• SE3
• SE3HD / ST / 70T
• SE4
• Symbio

Process

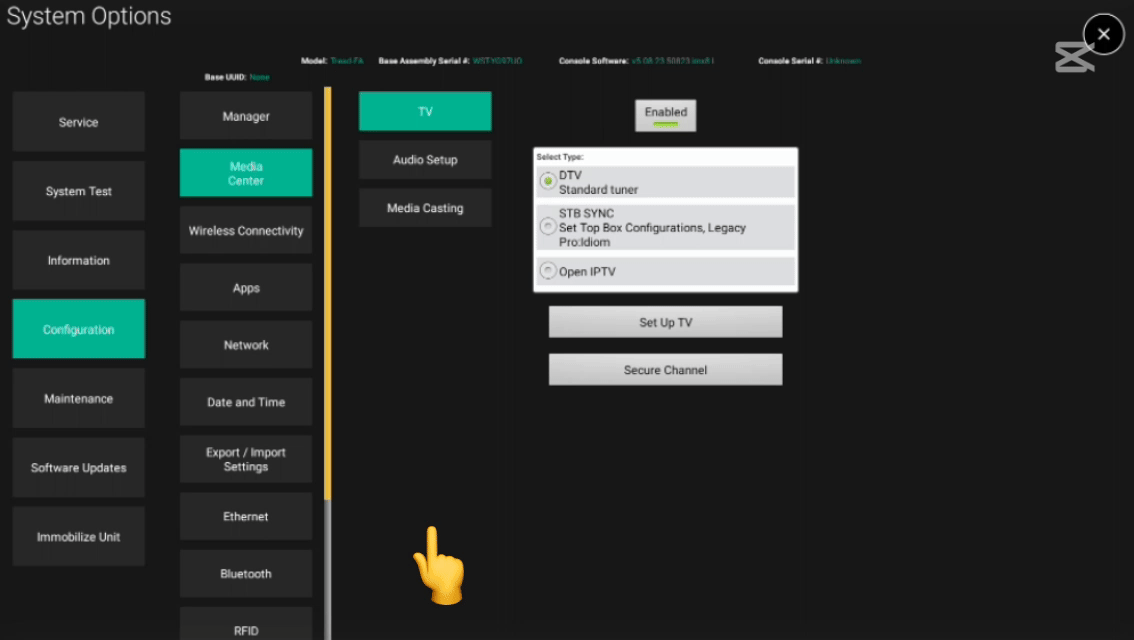

• Step 1 enter System Options
  1. Press Configuration from the menu option on the left of the console display.
  2. Press Media Center
  3. Press TV
  4. Check DTV is selected
  5. Press Set Up TV

• Step 2
  1. Press Menu
  2. Press Enter
  3. With Auto Tuning highlighted press Enter
     • The tuner will already be set to the connect TV format, used previously, and should not require changing.
  4. Press Enter
     • This will start the auto TV scan.
  5. Press Menu to exit the tuner menu.

Step 3

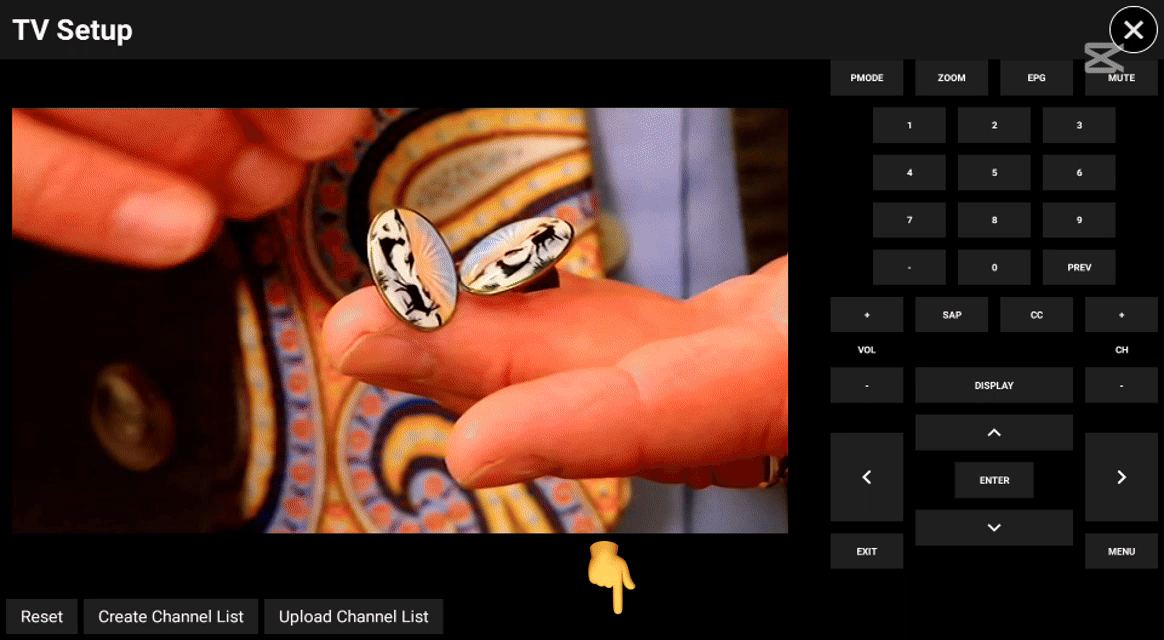

1. Press Create Channel List
2. Press OK
