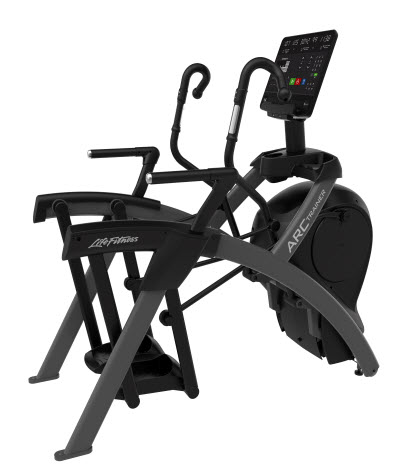

- Life Fitness Arc Trainer with SL console
- Life Fitness Arc Trainer with SE4 console

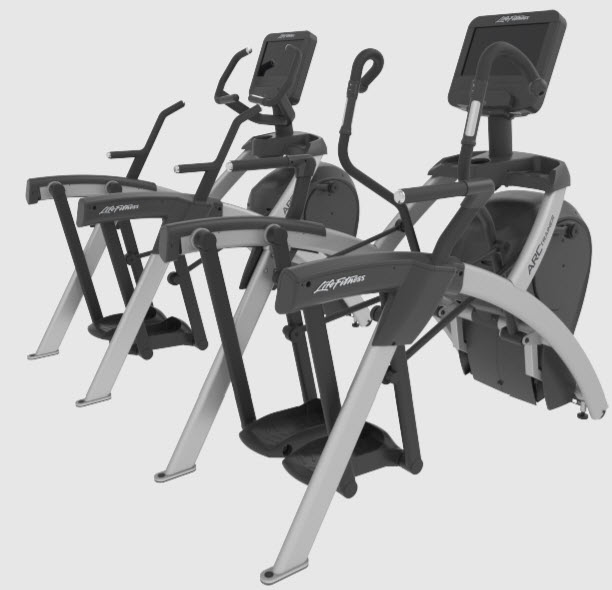

Life Fitness Arc Trainer with Discover SE3, SE3HD, ST, Integrity C, or X console
May 3, 2018: The Life Fitness Arc Trainer with a Discover SE3, SE3HD, ST, or Integrity C and X console was released May 3rd, 2018.
Life Fitness Arc Trainer Base SKUs with Discover SE3, SE3HD, ST, or Integrity C and X consoles:
- INA-CST, INA-CS, INA-LSL, INA-TSL, INATTS, INATLS, PFA-ARC-LB-11, PFT-ARC-TB-11, PF-INA-LBSL-ALLXM-11, PF-INA-TBSL-ALLXM-11
Life Fitness Arc Trainer with SL console
May 19, 2021: The Life Fitness Arc Trainer bases were updated to release Life Fitness Arc Trainer Bases that are compatible with the Life Fitness Integrity SL Console. This change goes in parallel with a change in item codes. The following item codes are packaged as indicated:
Life Fitness Arc Trainer Base SKUs with SL consoles:
- LF-ARC-LB, LF-ARC-TB, PF-ARC-LB, PF-ARC-TB, LF-ARC-TB-CS, CY-ARC-LB, CY-ARC-TB (1 Box ATO, May 2021 Release)
- LF-ARC-LB-B1, LF-ARC-TB-B1, CY-ARC-LB-B1, CY-ARC-TB-B1 (2 Box ATO - Console Shipped separately for International, July 2021 Release
- PF-INA-LBSL-XM-11, PF-INA-TBSL-XM-11 (PTO, November 2022 Release)
Note: We do not have the ability to retro-fit a legacy Integrity base using an Integrity X or Integrity C Console with an SL console at product launch due to the connections and cables not being consistent between X/C and SL. This may something available in the coming future.
See the following details which breaks down the difference between both bases:
| Updated Life Fitness Arc base | Previous Life Fitness Arc Trainer base | |
| Console supported | SL | X, C |
| External Power Supply (Vext) | 24Vdc, 60W for SL: 1004808-0001 | 12Vdc, 60W only (X, C): 1001517-0002 |
| Base pcba p/n | ARC RCB: 1015538-0021 | ARC RCB: 1003117-0021 |
| Base pcba differences | Vtv = Vext = 24Vdc, Hw changes to support Vtv = 24Vdc | Vtv = Vext = 12Vdc |
| Base Software | ||
| Ext Power & Console ID compatibility | Not supported (Vconsole is always turned on) | Supported (Verp current is checked by base pcba to ensure match between console and ext power before turning on Vconsole & Vtv) |
| Vtv | Vtv always enabled | Vtv only enabled with X or C console, when Vext = 12Vdc |
| TV Power pcba | Required, separate kit, INTEGRITY-BRACKET-03, (1015815-0000 is included in kit) that must be ordered when adding a TV to SL console. Vtv = 12Vdc, whether Vin = 12Vdc or 24Vdc. | Not used |
| Attachable TV power | From base pcba, via TV Power pcba, 1x2 conn with 12-24Vdc in, 2x1 conn with 12Vdc out | From base pcba (12Vdc) |
| Cabling | ||
| Power Cable | Arc: 1015797-0000 | Arc: 1006713-0001 |
| LP, ESS, Button Cable | Unique. Uses 28-pin JST, and is SAME for SL, Arc Total: 1015376-0000, Arc Lower: 1015377-0000 | Unique and different for, X & C (uses multiple connectors), Arc Total: 1006712-0001, Arc Lower: 1006712-0001 |
Life Fitness Arc Trainer with SE4 console

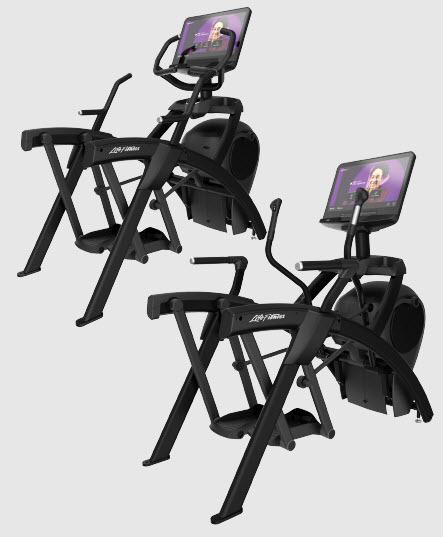

Life Fitness Arc Trainer with 16" SE4 console
December 9, 2022: The Life Fitness Arc Trainer Bases were updated to release Life Fitness Integrity Bases that are compatible with the Life Fitness Integrity SE4 16" Console. This change goes in parallel with a change in item codes. The following Life Fitness Integrity Treadmill Base SKUs are packaged as indicated:
| ARC TRAINER (LOWER BODY) | INA-LS4-ASLXM-11 |
| ARC TRAINER (LOWER BODY) | INA-LS4-DWTXM-11 |
| ARC TRAINER (LOWER BODY) | INA-LS4-TTNXM-11 |
| ARC TRAINER (LOWER BODY) | INA-LS4-BLKXM-11 |
| ARC TRAINER (TOTAL BODY) | INA-TS4-ASLXM-11 |
| ARC TRAINER (TOTAL BODY) | INA-TS4-DWTXM-11 |
| ARC TRAINER (TOTAL BODY) | INA-TS4-TTNXM-11 |
| ARC TRAINER (TOTAL BODY) | INA-TS4-BLKXM-11 |

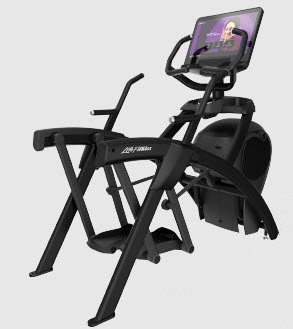

Life Fitness Arc Trainer with 16" or 24" SE4 console
July 17, 2023: The Life Fitness Integrity Arc Trainer bases were released that are compatible with the Life Fitness Discover SE4 Consoles with the Integrity+ Series. The following item codes are packaged as indicated below.
Life Fitness Integrity Arc Trainer Total Body Base SKUs with SE4 consoles:
| ARC TRAINER (TOTAL BODY) | INA-TSE4-ASLXF-13 |
| ARC TRAINER (TOTAL BODY) | INA-TSE4-DWTXF-13 |
| ARC TRAINER (TOTAL BODY) | INA-TSE4-TTNXF-13 |
| ARC TRAINER (TOTAL BODY) | INA-TSE4-BLKXF-13 |
| ARC TRAINER (TOTAL BODY) | INA-TSE4-CGCXF-13 |

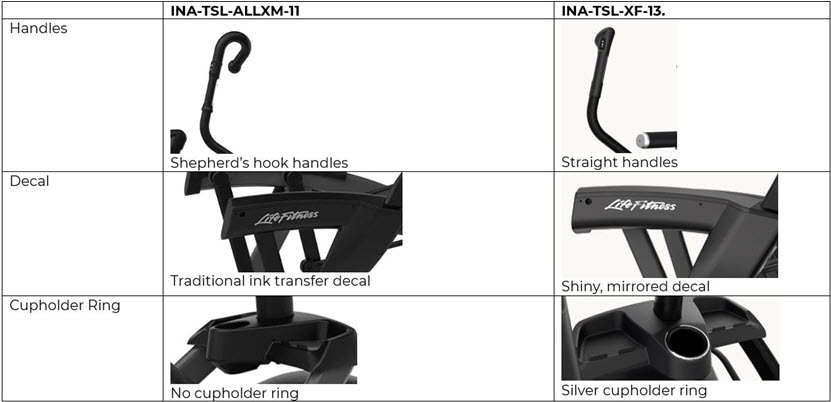

See the following details for differences between the Life Fitness Total Body Arc Trainer with X, C, or SL consoles and Life Fitness Total Body Arc Trainer bases with SE4 consoles:
-
Ability to use a 16" or 24" SE4 console
- Existing Shepard hook handlebar arms updated with Straight handlebar arms
- Smooth Charcoal paint
- Shiny Metallic script Life Fitness logo
- Cupholder with silver metal ring
Life Fitness Integrity Arc Trainer Lower Body Base SKUs with SE4 consoles:
| ARC TRAINER (LOWER BODY) | INA-LSE4-ASLXF-13 |
| ARC TRAINER (LOWER BODY) | INA-LSE4-DWTXF-13 |
| ARC TRAINER (LOWER BODY) | INA-LSE4-TTNXF-13 |
| ARC TRAINER (LOWER BODY) | INA-LSE4-BLKXF-13 |
| ARC TRAINER (LOWER BODY) | INA-LSE4-CGCXF-13 |
See the following details for differences between the Integrity Lower Body Arc Trainer with X, C, or SL consoles and Integrity Lower Body Arc Trainer bases with SE4 consoles:
- Ability to use a 16" or 24" SE4 console
- Smooth Charcoal paint
- Shiny Metallic script Life Fitness logo
- Cupholder with silver metal ring
There were also Life Fitness Club Series+ (Plus) consumer bases with the Life Fitness Discover SE4 Consoles. See the following article for Life Fitness Integrity+ and Club Series+ Cardio Differences
Life Fitness Club Series+ Consumer SKUs:
| ARC TRAINER (TOTAL BODY) Titanium Storm Argentina | INA-CSTSE4-ASLF-AG13 |
| ARC TRAINER (TOTAL BODY) Titanium Storm Continental | INA-CSTSE4-TTNF-CO13 |
| ARC TRAINER (TOTAL BODY) Titanium Storm UK | INA-CSTSE4-TTNF-UK13 |
| ARC TRAINER (TOTAL BODY) Titanium Storm AU | INA-CSTSE4-TTNF-AU13 |
| ARC TRAINER (TOTAL BODY) Titanium Storm DOM 115V | INA-CSTBSE4-TTNLF-13 |
| ARC TRAINER (TOTAL BODY) Black Onyx DOM 115V | INA-CSTBSE4-BLKLF-13 |
