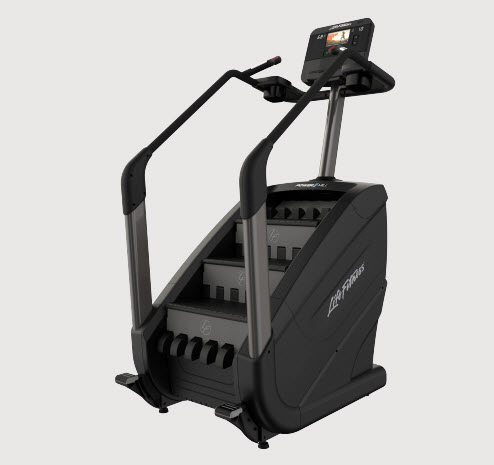

PowerMill with Discover SE, Discover SI or Explore console
March 2017: The Life Fitness PowerMill with a Discover SE, Discover SI or Explore console was released March 2017.
The following Life Fitness PowerMill Base SKUs are packaged as indicated:
- 95PS-ALLXX-XX01
- 95PS-ALLXX-XX02
- 95PS-ALLXX-XX01PF
- 95PS-ALLXX-XX02PF

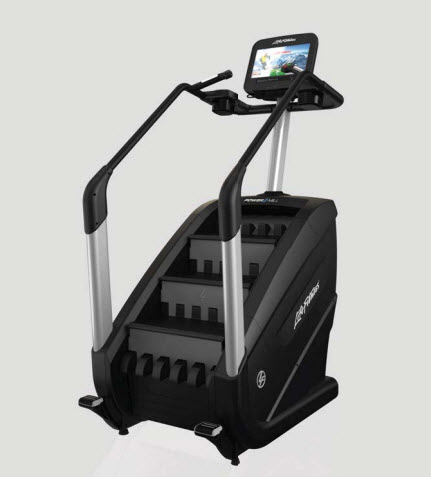

PowerMill with Discover SE3, SE3HD, ST, or Integrity C and X console
May 3, 2018: The Life Fitness PowerMill with a Discover SE3, SE3HD, ST, or Integrity C and X console was released May 2018.
The following Life Fitness PowerMill Base SKUs are packaged as indicated:
- 95PS-ALLXX-XX03
- 95PS-ALLXX-XX03PF
- 95PS-ALLXX-XX03RF
PowerMill with Integrity SL console
May 19, 2021: The Life Fitness PowerMill Bases were updated to release Life Fitness PowerMill Bases that are compatible with the Life Fitness Integrity SL Console. This change goes in parallel with a change in item codes. The following item codes are packaged as indicated:
Life Fitness PowerMill SKUs with SL:
- INPM-SLXXX-01 PowerMill with SL Console (Multi Box - PTO, Domestic, May 2021 Release)
- 95PS-ALLXM-XX04 PowerMill with SL Console (Multi Box - PTO, International, May 2021 Release)
- 95PS-ALLXM-XX04PF Planet Fitness PowerMill with SL Console (Multi Box - PTO, Domestic, May 2021 Release)
- 95PS-ARBXM-XX04 PowerMill with Arabic SL Console (Multi Box - PTO, Domestic and International, July 2021 Release)
Note: We do not have the ability to retro-fit a legacy PowerMill bases using an Integrity X or Integrity C Console with an SL console at product launch due to the connections and cables not being consistent between X/C and SL. This may be something available in the coming future.
See the following details which breaks down the difference between both bases:
| Updated PowerMill base with SL | PowerMill base with X, C | |
| Console supported | SL | X, C |
| External Power Supply (Vext) | 24Vdc, 60W for SL: 1004808-0001 | 12Vdc, 60W only (X, C): 1001517-0002 |
| Base pcba p/n | Powermill SIB: 1016928-0012 | Powermill SIB: 1003158-0012 |
| Base pcba differences | Vtv = Vext = 24Vdc, Hw changes to support Vtv = 24Vdc | Vtv = Vext = 12Vdc |
| Base Software | ||
| Ext Power & Console ID compatibility | Not supported (Vconsole is always turned on) | Supported (Verp current is checked by base pcba to ensure match between console and ext power before turning on Vconsole & Vtv) |
| Vtv | Vtv always enabled | Vtv only enabled with X or C console, when Vext = 12Vdc |
| TV Power pcba | Required, separate kit, INTEGRITY-BRACKET-03, (1015815-0000 is included in kit) that must be ordered when adding a TV to SL console. Vtv = 12Vdc, whether Vin = 12Vdc or 24Vdc. | Not used |
| Attachable TV power | From base pcba, via TV Power pcba, 1x2 conn with 12-24Vdc in, 2x1 conn with 12Vdc out | From base pcba (12Vdc) |
| Cabling | ||
| Power Cable | Powermill: 1015801-0000 | Powermill: 1006547-0001 |
| LP, ESS, Button Cable | Unique. Uses 28-pin JST, and is SAME for SL, Powermill: 1014639-0000 | Unique and different for X & C (uses multiple connectors), Powermill: 1006550-0001, 1006545-0001 and 1006734-0001 |
| Base specific considerations | ||
| Powermill | New console mounting bracket to alleviate interference (1015453-0000) | Original console mounting bracket |

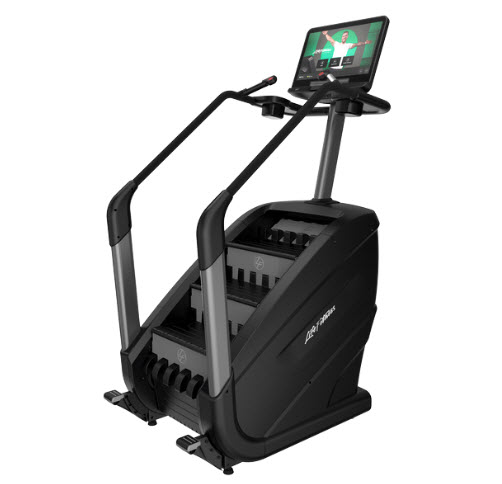

PowerMill with SE4 console
PowerMill with 16" SE4 console
December 9, 2022: The Life Fitness PowerMill bases were released that are compatible with the Life Fitness Discover 16" SE4 Consoles. The following item codes are packaged as indicated below.
- INPM-SE4XX-01
PowerMill with 16"or 24" SE4 console
July 17, 2023: The Life Fitness PowerMill bases were released that are compatible with the Life Fitness Discover 16" or 24" SE4 Consoles with the Integrity+ Series. The following item codes are packaged as indicated below.
- 95PS-ALLXF-XX06
